SABdrain 501 is a polypropylene channel drainage system fitted with Class A pressed metal grates, manufactured in Italy. This kit covers a 1 metre run at 100mm internal width and 100mm internal depth, rated to load class A10 under AS 3996.

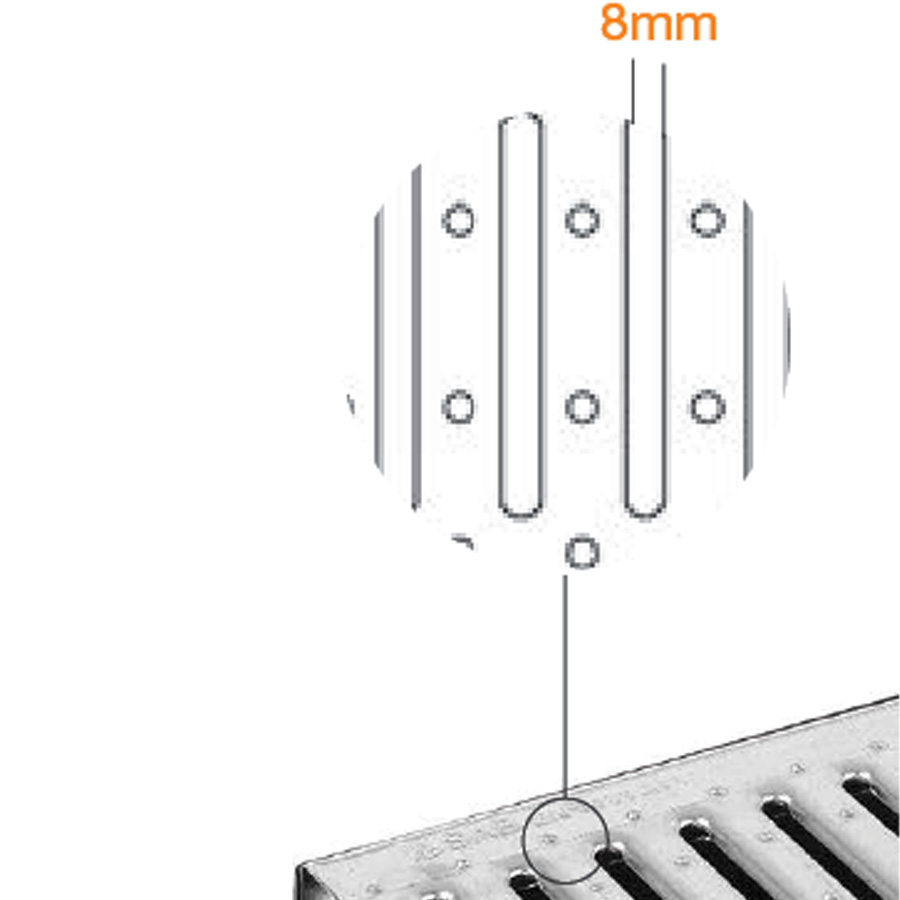

Each grate uses a click-clack fixing system for quick installation and access, and the 8mm aperture suits DDA-compliant pedestrian areas. The polypropylene channel is lighter than polymer concrete, which reduces handling on site and shortens installation time, and the channel material resists corrosion in wash-down and coastal conditions.
Recommended applications: plazas and malls, walkways and footpaths, residential paths and courtyards, and landscaped pedestrian areas.

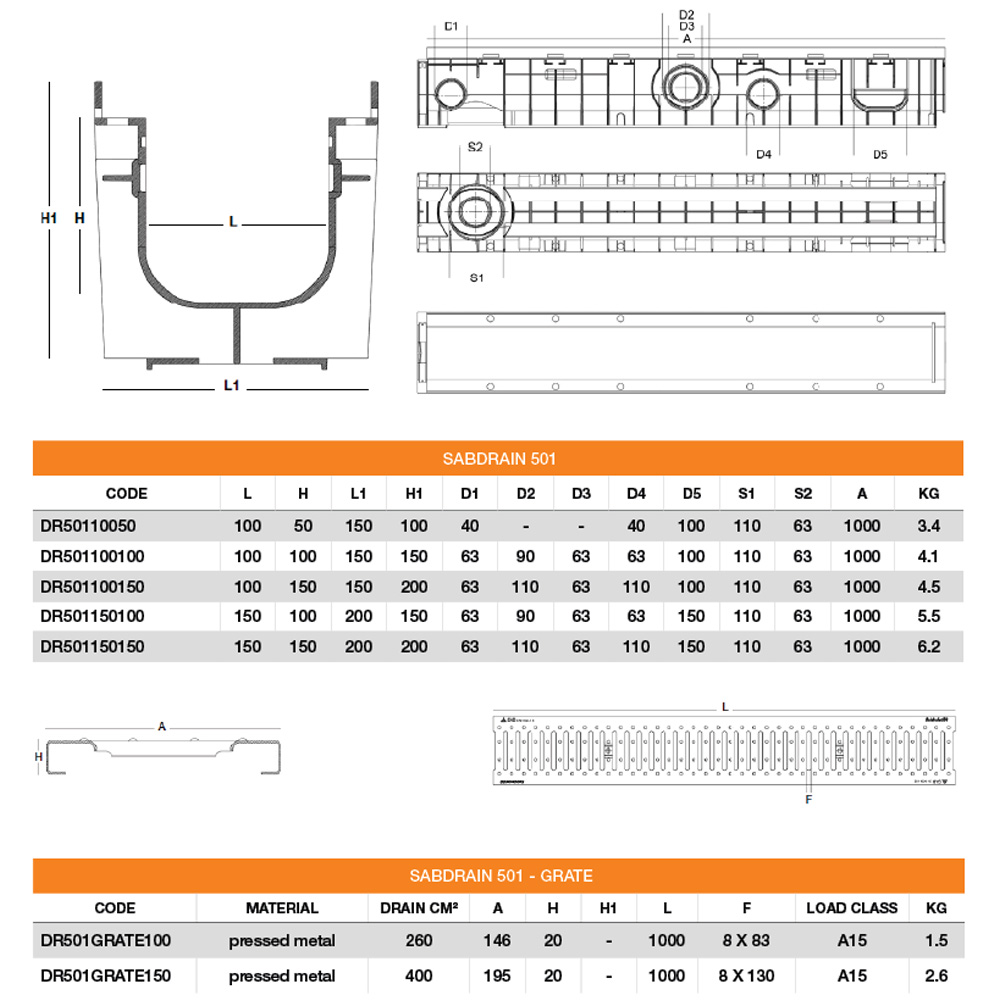

Full technical data, dimensions and installation detail are available on the SABdrain 501 100mm x 100mm product page.
